Scott Aerator replacement motors are the same as the original motors on Scott units. These Motors come standard with only the motor lead (18"), but as an option, lengths of the cord are available.

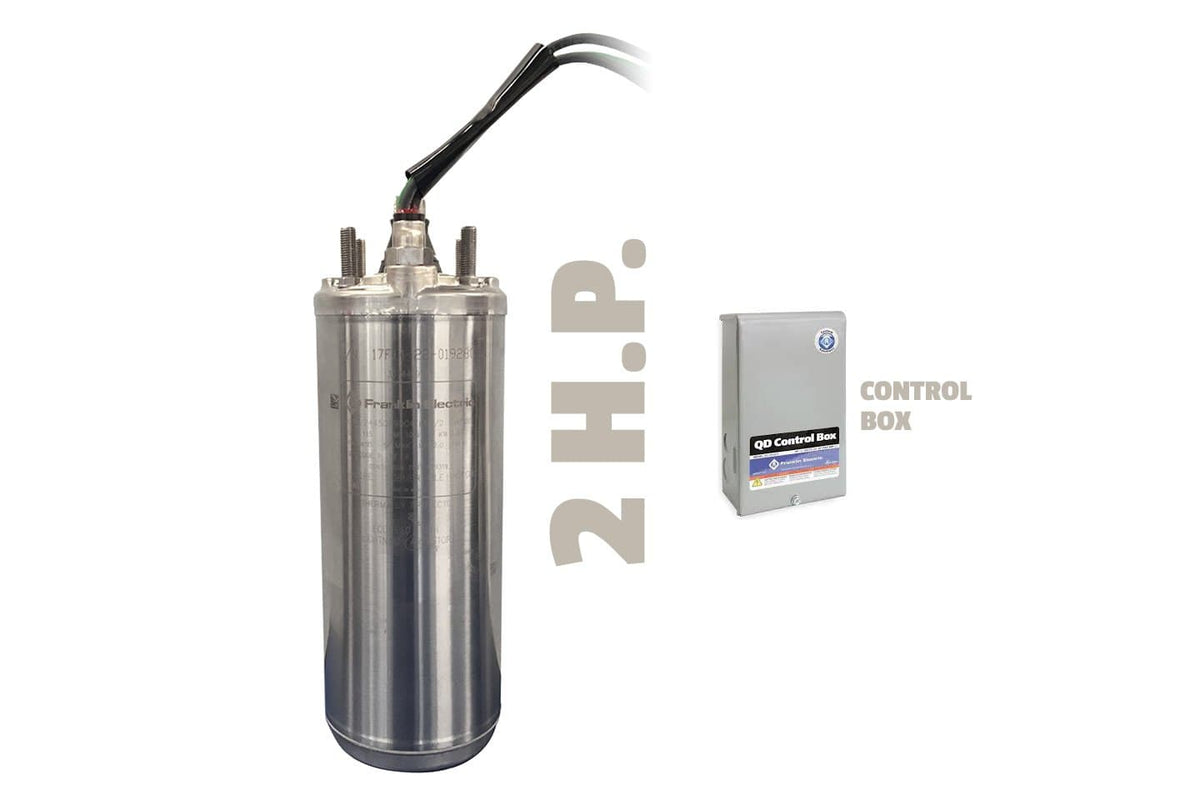

Scott Aerator replacement motors are designed using a two-wire, split phase, with integral starting components and an-winding thermal overload protection. In addition, a two-wire BIAC starting switch is built in that provides reverse impact torque to allow starting in challenging conditions. Models 2 HP or less do not require a control box.
Components
• Standard water well castings: 304 SS over iron
• Stator shell: 301 SS
• Shaft extension: 17-4 SS
• Fasteners: 305 SS or 302 SS
• Seal cover: acetal
• Seal: nitrile rubber lip
• Diaphragm: nitrile rubber
• Diaphragm cover: 301 SS
• Slinger: nitrile rubber
• Lead wire (or cable): XLPE ➀
• Lead potting: epoxy
• Lead jam nut: 303 SS

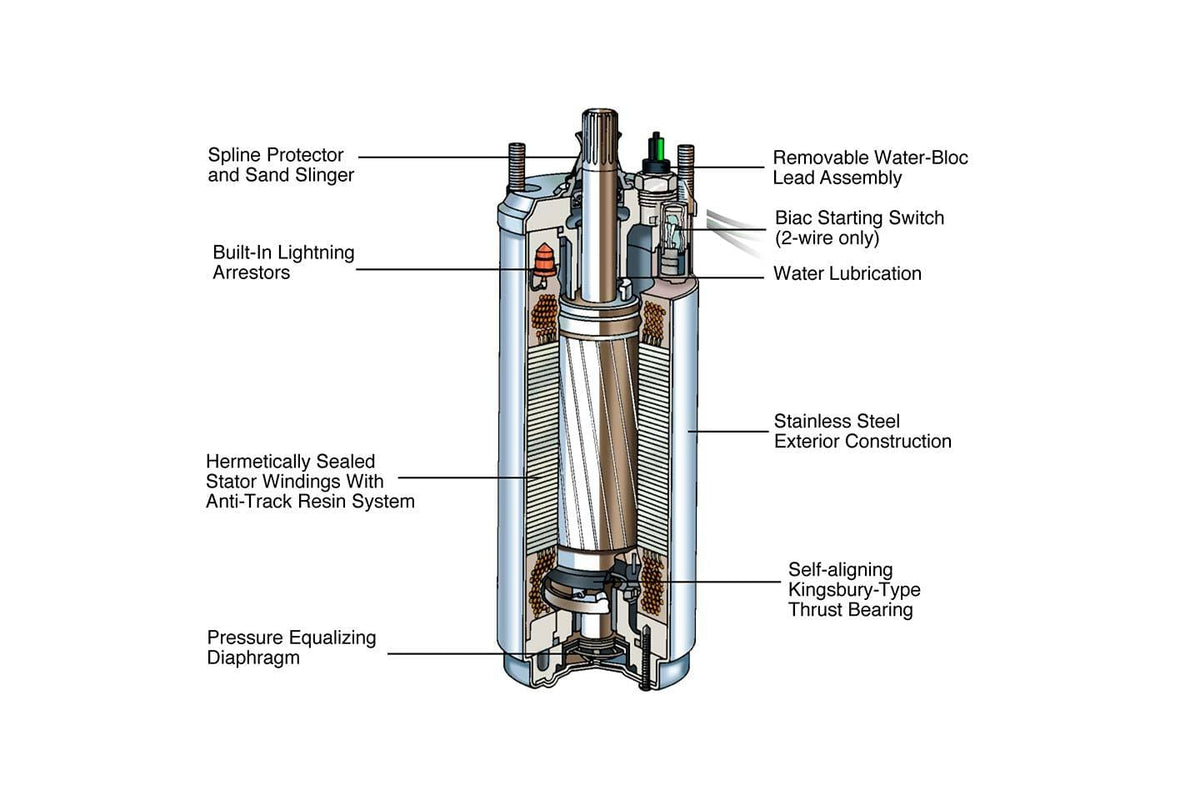

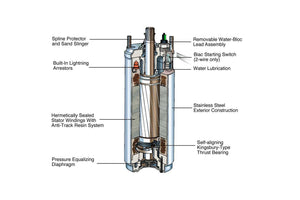

Specifications
- Stainless Steel exterior construction making these motors corrosion resistant.
- Stainless steel splined shaft.
- Featuring hermetically sealed windings.
- An anti-track self-healing resin system.
- Water lubrication.
- Filter check valve.
- Kingsbury-type thrust bearing.
- Pressure-equalizing diaphragm.
- Lightning arrestors built-in.
- Removable "water Block" lead installed.
- UL 778 Recognized.
- CSA certified, ANSI/NSF 61 certified.
- Nema Mounting dimensions.
- One-year warranty.
